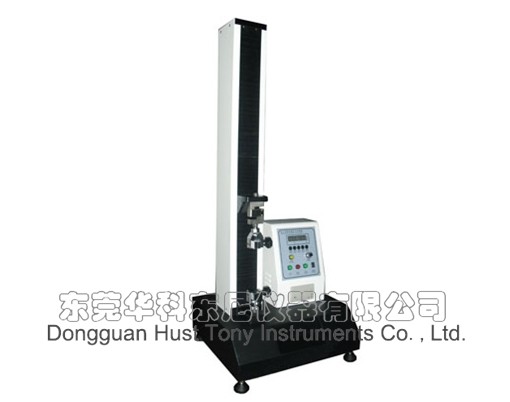

This machine can widely apply to a variety of different textile materials and wood, shoes, tires, rubber tubes, triangular tape, plastic sheeting, plastic sheeting, packaging films, acrylic, FRP, ABS, EVA, PV and other products , semi-or dumbbell-shaped specimens of the tensile strength, elongation, tear, glue focused, tensile stress, peel, shear, the sticky relay of rubber and metal by using different fixtures
Parameters:
Capacity: 50 kg (5,10,20,100,200kg or specified)
Load accuracy: ±1%(±0.5%)
Switch unit:Kgf,lbf,N
Load solution: 1/10,000
Test speed: 100~500mm/min
Displacement: 0.01mm
Max stroke: 650mm/800mm/1000mm
Power:220V.60Hz, 24Am
Dimension: 500*460*1520mm
Weight:100 KG
Stroke Resolution: 0.1 mm
Data sampling frequency: 10 Hz
Motor: AC governor motor
